5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness

Name: 5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm High Brightness
Brand: SRYLED
Price: 980 USD

Buy cheap 5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness product

Brand Name : SRYLED

Model Number : SRYLED - OFC - P5

Certification : CE, LVD, RoHS

Place of Origin : Shenzhen, China

MOQ : 2 Square Meters

Price : US$ 980 - 1,050 / Square Meter

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 1,000 Square Meter per Month

Delivery Time : 10 - 12 Work Days

Packaging Details : Wooden Case (wooden case size depend on cabinet quantity)

Pixel Pitch : 5mm

Cabinet Size : 960mm x 960mm

Cabinet Weight : 40kg

Cabinet Color : Black

Cabinet Material : Stainless Steel

Waterproof : IP65

Lifespan : 100,000hrs

Certificate : CE, LVD, RoHS

Contact Now

5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness

Decription:

Waterproof 5mm Outdoor Full Color 960mm x 960mm LED Display Cabinet, High Brightness. Brightness can be higher than 6,500nits.

Features:

1. Stainless steel cabinet design, waterproof IP65

2. Excellent heat dissipation design and performance.

3. Cost-effective solution and very popular.

4. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.

Specification:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2727
Cabinet Size	960mm x 9600mm
Cabinet Resolution	192dots x 192dots
Cabinet Weight	40kg
Drive Duty	1/8Constant Current
Brightness	>6,500nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	AC220V (110V) ±15%, 47 - 64HZ
Max Power Consumption	1,400W/sqm
Ave. Power Consumption	460W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Widely using for music concert, theater, stadium, showroom, stage, fitness room, monitoring room and etc.

Pictures:

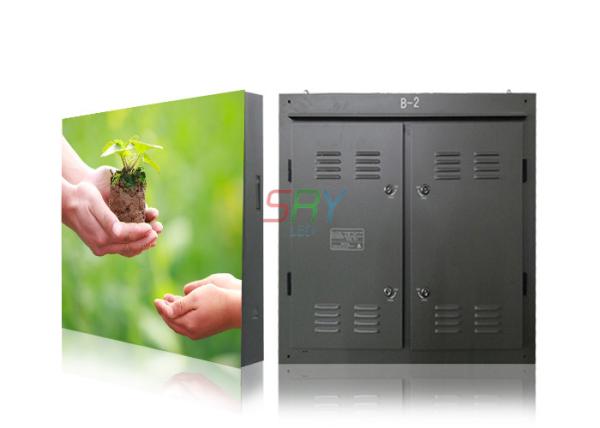

5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness

Competitive Advantages:

1. Anti-damage design:

Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.

2. Mixed-use available:

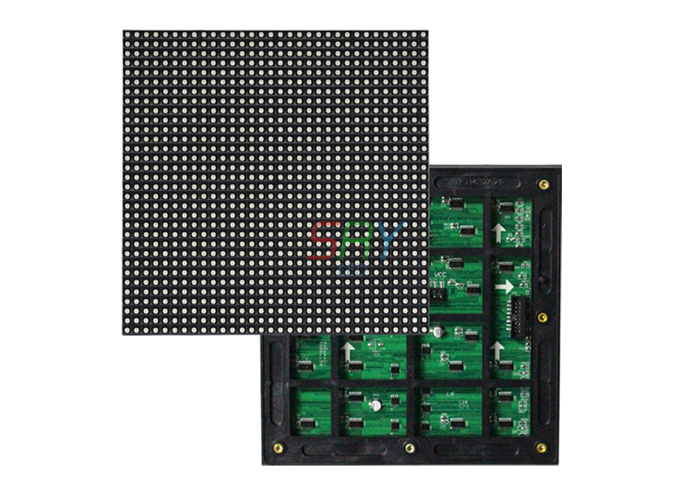

Can be also used for other 160mm x 160mm modules.

3. Light weight and slim:

The thickness of each cabinet less than 100mm,only 40kg/cabinet.

4. Smart and Simple

No internal connection cables can deliver a much more stable performance.
